Quick Details

  • Brand Name: OEM available
  • Model Number: YN100-180
  • Type: Asynchronous Motor
  • Frequency: 50/60HZ
  • Output Power: 180-200W
  • Protect Feature: IP44
  • Phase: Single-phase
  • Certification: CCC, CE
  • AC Voltage: 110vac,200vac,380vac,415vac
  • Place of Origin: Zhejiang, China (Mainland)
  • Efficiency: good
  • type: YN100 180W brake gear motor
  • phase: single phase and 3phases available
  • noise: low noise during motor running
  • torque: torque is high comparing to similar motors
  • grease: no grease leakage after long time working
  • voltage: 110VAC,220VAC,380VAC,415VAC
  • speed: the range is from 3rpm to 500rpm. Lower speed ok as well
  • power: power range is from 120W to 200W
  • insulation class: class E
  • use: It is widely used in packing equipment,transmit equipment,etc

Packaging & Delivery

Packaging Details Packing details of YN100 180W brake gear motor is as follows
G.W.: 29.2KGS/CTN
N.W.:28KGS/CTN
Q.T.Y.: 4PCS/CTN
SIZE: 58*36*33cm
Note: Different Power and Different Gear ratio will lead to different gross weight and packing size.
Delivery Time Shipped in 15 days after payment



Product Describe



YN100 - 180W brake gear motor

YN series is AC asynchronous gear motor. This type motor is single phase and reversible.YN90 and YN100 can be designed as 3phases type as well. They are widely mounted in various equipment.

The range is YN60, YN70, YN80, YN90, and YN100. (Note: the numbers is the diameter of gearbox). The power is from 4W to 200W.














Product Data
Data of 180W brake gear motor  YN100-180W 200W

 Motor Part




Name

Poles

Type

Power W

Voltage V

Frequency Hz

Current A

Start torque
mN.m

Rated torque
mN.m

Rated speed
rpm
Capacitor
μF/VAC
Reversible Motor4YN100-180180220501.709981273135012/450
YN100-18018011050/603.509981273/10741350/160050/250
YN100-200200220502.0010851415135014/450
YN100-20020011050/604.0010851415/11941350/160065/250
Induction Motor4YY100-180180220501.609981273135012/450
YY100-18018011050/603.609981273/10741350/160050/250
YY100-200200220501.8010851415135014/450
YY100-20020011050/603.5010851415/11941350/160060/250

Three phase motor
4Y100-180180220501.3818201273/10741350/1600/
Y100-18018011050/600.9818201273/10741350/1600/
Y100-20020022050/601.4520201415/11941350/1600/
Y100-20020038050/601.0520201415/11941350/1600/



 Motor with gearbox-  Load permissible with speed reducer


Rated speed (rpm)
500400300250200150120100807560
Gear Ratio33.6567.51012.515182025
permissible load180WN.m3.03.65.06.07.7310.312.815.416.718.723
200WN.m3.434.15.736.858.611.514.317.118.620.625.8




Rated speed (rpm)
504035302520161512108
Gear Ratio30364050607590100120150180
permissible load180WN.m27.833.4374444444444444444
200WN.m30.836.841.34444444444444444





 Note: Speed figures are based on synchronous speed. The actual output speed under rated load conditions is about 2~20% less than synchronous speed. The grey background indicates the output shaft of gear motor rotates in the same direction output shaft of motor. The white background  indicates in the opposite direction.

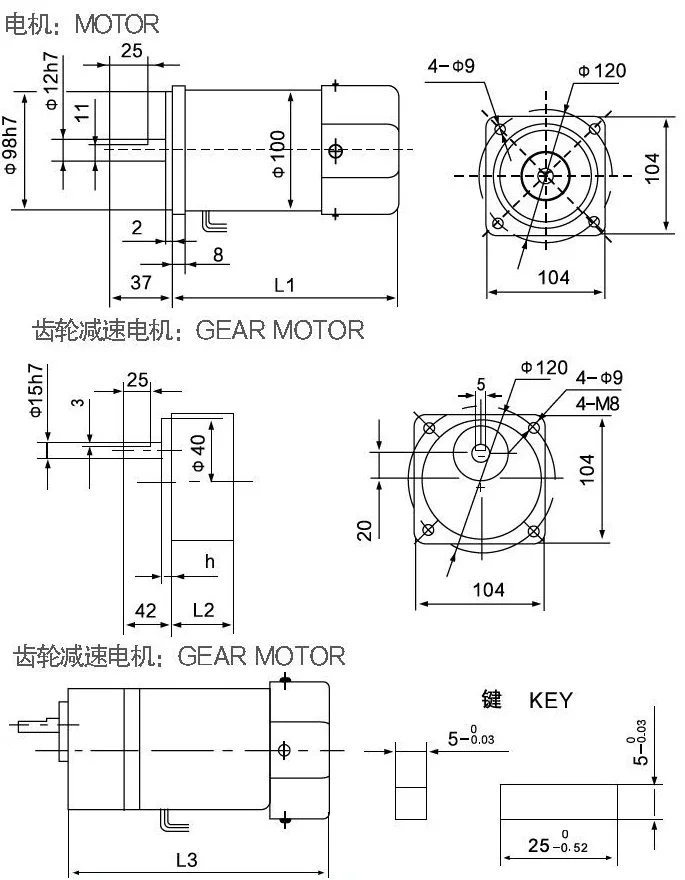

Product Size

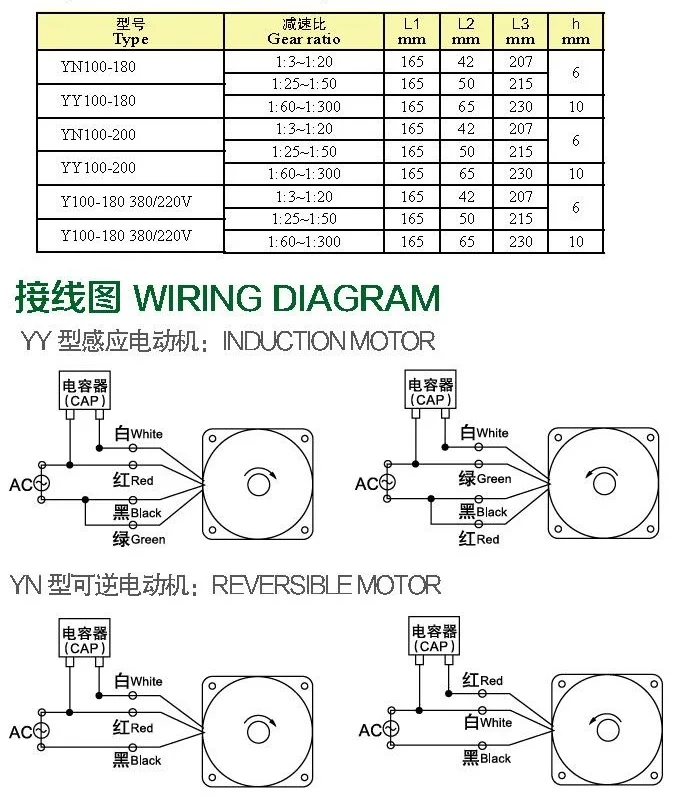

Size of   YN100-180W 200W
