YN70 0.1rpm low speed gear motor

FOB Reference Price:Get Latest Price
US $1-30 / Piece | 1 Piece/Pieces Sample is available.For more data, welcome to contact us! (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month YN70 can be shipped as request
Port:
Ningbo and Shanghai port both OK.
Report Suspicious Activity
Overview
Quick Details
Brand Name:
OEM available
Model Number:
YN70
Type:
Induction Motor
Frequency:
50/60HZ
Output Power:
15W
Protect Feature:
IP44
Phase:
Single-phase
Certification:
CCC, CE
AC Voltage:
115vac,240vac
Place of Origin:
Zhejiang, China (Mainland)
Efficiency:
good
type:
YN70 0.1rpm low speed gear motor
phase:
single phase and 3phases available
noise:
noise is low during working
Dimension:
Dia. 70mm
speed:
0.1rpm to 500rpm
voltage:
110vac,220vac
power:
10W,15W
grease:
there is no grease leakage after long time working
gears:
precise gears
use:
it is widely used in transmission equipment
Packaging & Delivery
Packaging Details
Packing details of YN70 0.1rpm low speed gear motor is as follows
G.W.: 20.4KGS/CTN
N.W.:18KGS/CTN
Q.T.Y.: 12PCS/CTN
SIZE: 33.6*23*17cm
Note: Different Power and Different Gear ratio will lead to different gross weight and packing size.
Delivery Time
Shipped in 15 days after payment

Product Describe

YN series is AC asynchronous gear motor. This type motor is single phase and reversible.YN90 and YN100 can be designed as 3phases type as well. They are widely mounted in various equipment.

The range is YN60, YN70, YN80, YN90, and YN100. (Note: the numbers is the diameter of gearbox). The power is from 4W to 200W.







Product Data
Data

Name

Poles

Type

Power W

Voltage V

Frequency Hz

Current A

Start torque
mN.m

Rated torque
mN.m

Rated speed
rpm
Capacitor
μF/VAC
Reversible Motor

Induction Motor
4YN(YY)70-1010220500.1664.77612501/450
YN(YY)70-1010110500.3564.77612504/250
YN(YY)70-1515220500.2011511512501.5/450
YN(YY)70-1515110500.4011511512506/250
YN(YY)70-2020220500.2517016012001.8/450
YN(YY)70-2020110500.5017016012007/250
YN(YY)70-2525220500.3617020012001.8/450
YN(YY)70-2525110500.6017020012007/250
YN(YY)70-3030220500.3530022013003.5/450
YN(YY)70-3030110500.70300220130014/250

 Torque Table


Rated speed (rpm)
500400300250200150120100807560
Gear Ratio33.6567.51012.515182025
 permissible load10WN.m0.180.220.290.340.420.560.700.841.01.111.33
15WN.m0.280.350.470.560.700.931.101.401.751.862.10
20WN.m0.360.440.570.690.841.121.401.752.02.332.67
25WN.m0.450.550.730.861.051.401.752.112.52.673.33
30WN.m0.540.660.871.031.261.682.102.533.03.204.0




Rated speed (rpm)
504035302520161512108
Gear Ratio30364050607590100120150180
 permissible load10WN.m1.61.922.102.402.803.03.03.03.03.03.0
15WN.m2.503.03.403.804.404.904.904.904.904.904.90
20WN.m3.193.844.204.414.904.904.904.904.904.904.90
25WN.m3.994.804.904.904.904.904.904.904.904.904.90
30WN.m4.794.904.904.904.904.904.904.904.904.904.90


Note: Speed figures are based on synchronous speed. The actual output speed under rated load conditions is about 2~20% less than synchronous speed. The grey background indicates the output shaft of gear motor rotates in the same direction output shaft of motor. The white background  indicates in the opposite direction.

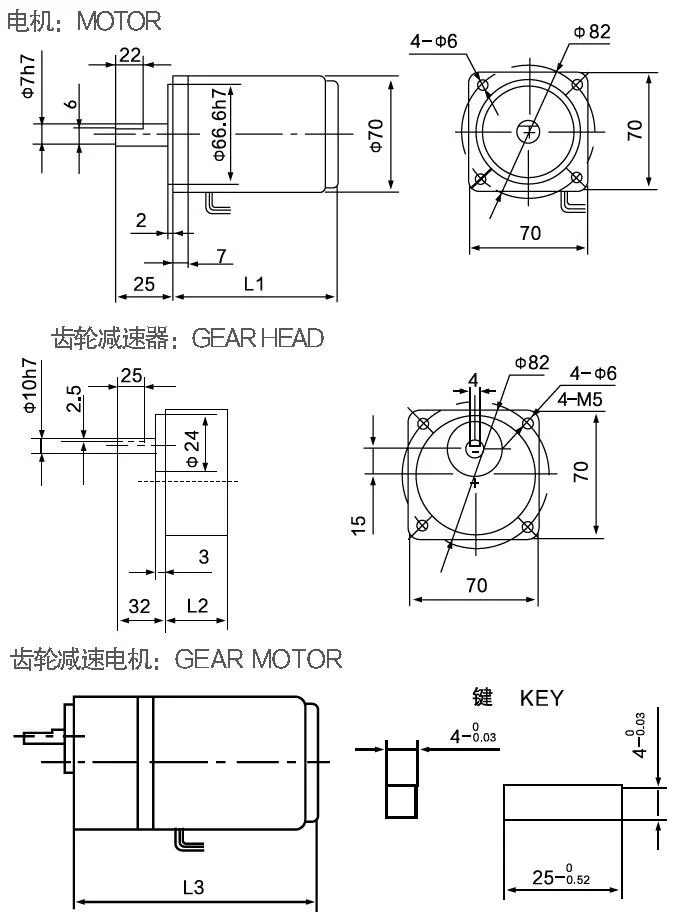

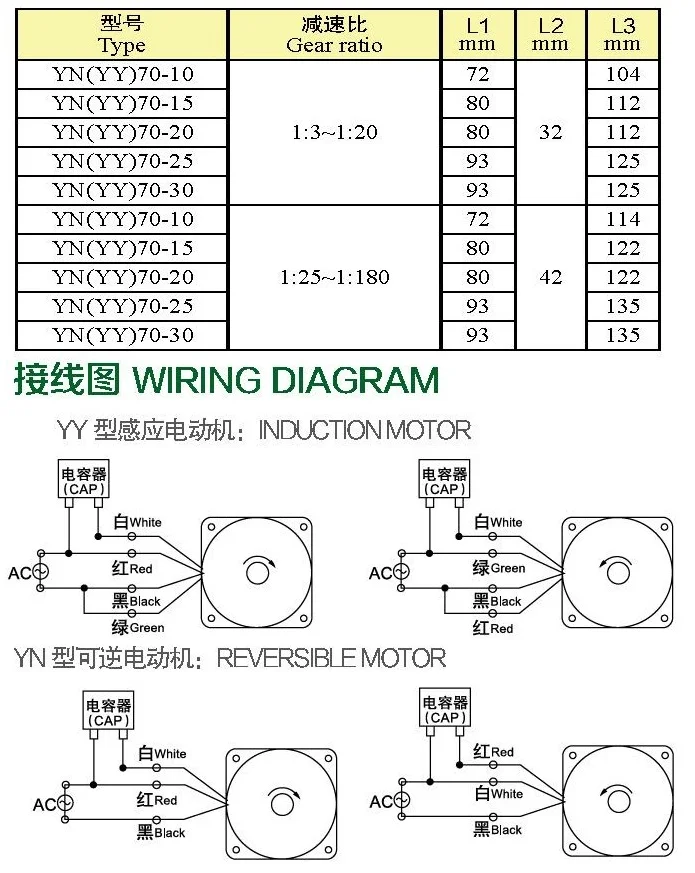

Product Size



Our Services



TypeYN70
PhaseSingle Phase or 3Phases for choice
Gearsprecise gears
Greaseno leakage after long time working
OEM ServiceYes! We offer OEM service.

Company Information

more products

FAQ



1. Q: Are you factory or trading company?

  A: We are factory.

2. Q: Could you offer motor as per our requirement?

  A: Yes, we have the techincal team to design or make motor as per customer's demand.

3. Q: What certificate do you have?

  A: We have CE for AC motors. DC motors,as they are in safety voltage, we still not apply CE. But if the ce is needed and quantity is OK, our company will apply CE for DC motors.

4. Q: Could you pack motors as per our request?

  A: Yes, off course. Just please offer us the details.

5. Q: What is M.O.Q of the motor? And, our business is small, is it OK?

  A: Quantity is not the main concern.All the business is from small to big.Welcome to contact us!
