Quick Details

  • Brand Name: OEM available
  • Model Number: YN90 bbq gear motor
  • Type: Asynchronous Motor, bbq gear motor
  • Frequency: 50/60HZ
  • Output Power: 60W
  • Protect Feature: IP44
  • Phase: Single-phase, Single Phase
  • Certification: CCC, CE
  • AC Voltage: 240vac, 115vac,380vac,415vac
  • Place of Origin: Zhejiang, China (Mainland)
  • Efficiency: good
  • Item No.: YN90
  • Power range: 40 to 60W
  • Output Speed: 8 to 500rpm
  • Dimenstion: Dia. 90mm
  • Gears: precise gears
  • Grease: no leakage after long time working
  • Voltage: 110/220/380/415VAC
  • OEM Service: Yes! We offer OEM service.

Packaging & Delivery

Packaging Details Packing details of YN90 bbq gear motor is as follows:
G.W.: 25.2KGS/CTN
N.W.:24KGS/CTN
Q.T.Y.: 6PCS/CTN
SIZE: 29*24.5*20cm
Note: Different Power and Different Gear ratio will lead to different gross weight and packing size.
Delivery Time Shipped in 20 days after payment
Product Describe

bbq gear motor - YN90

YN series is AC asynchronous gear motor. This type motor is single phase and reversible.YN90 and YN100 can be designed as 3phases type as well. They are widely mounted in various equipment.

The range is YN60, YN70, YN80, YN90, and YN100. (Note: the numbers is the diameter of gearbox). The power is from 4W to 200W.







Product Data
Data of YN90-40W 60W bbq gear motor




Name

Poles

Type

Power W

Voltage V

Frequency Hz

Current A

Start torque
mN.m

Rated torque
mN.m

Rated speed
rpm
Capacitor
μF/VAC
Reversible Motor4YN90-4040220500.50 29429413003/450
YN90-404011050/601.00 294/246294/2461300/155012/250
YN90-6060220500.65 44144113004/450
YN90-606011050/601.30 441/372441/3721300/155020/250
Induction Motor4YY90-4040220500.45 21529413002.5/450
YY90-404011050/600.90 215294/2461300/155010/250
YY90-6060220500.55 34344113003.5/450
YY90-606011050/601.10 343441/3721300/155015/250

Three phase motor
4Y90-404022050/600.35 392294/2461300/1550/
Y90-404038050/600.20 392294/2461300/1550/
Y90-606022050/600.50 637441/3721300/1550/
Y90-606038050/600.30 637441/3721300/1550/







Torque Table of  YN90-40W 60W bbq gear motor




Rated speed (rpm)
500400300250200150120100807560
Gear Ratio33.6567.51012.515182025
permissible load40WN.m0.720.851.181.401.762.352.903.53.854.25.4
60WN.m1.081.21.781.962.63.54.44.96.47.08.0




Rated speed (rpm)
504035302520161512108
Gear Ratio30364050607590100120150180
permissible load40WN.m6.47.58.59.89.89.89.89.89.89.89.8
60WN.m9.611.512.714.714.714.714.714.714.714.714.7





Note: Speed figures are based on synchronous speed. The actual output speed under rated load conditions is about 2~20% less than synchronous speed. The grey background indicates the output shaft of gear motor rotates in the same direction output shaft of motor. The white background  indicates in the opposite direction.







Product Size

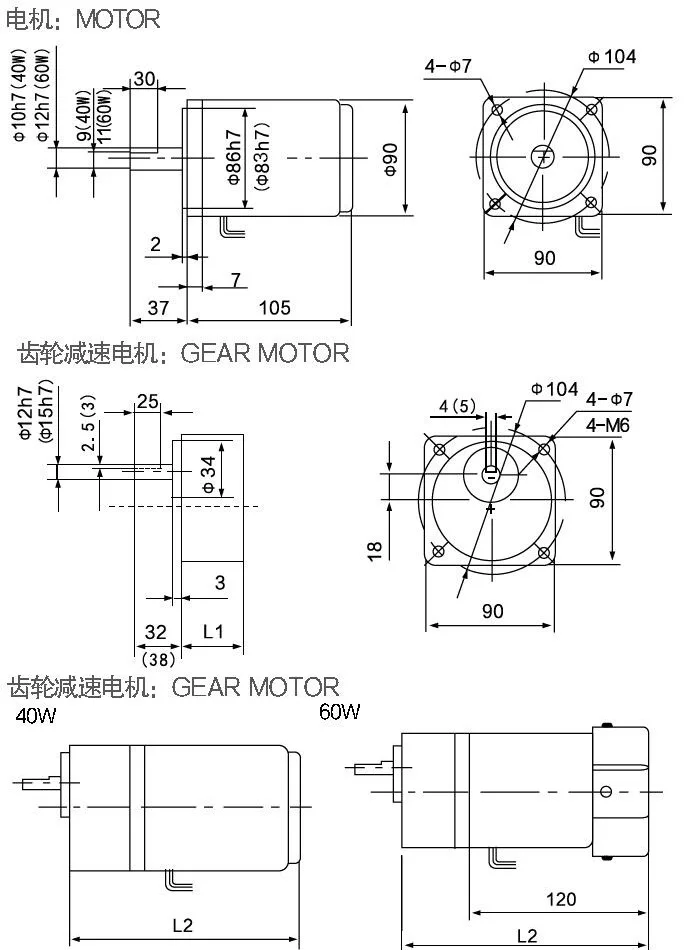

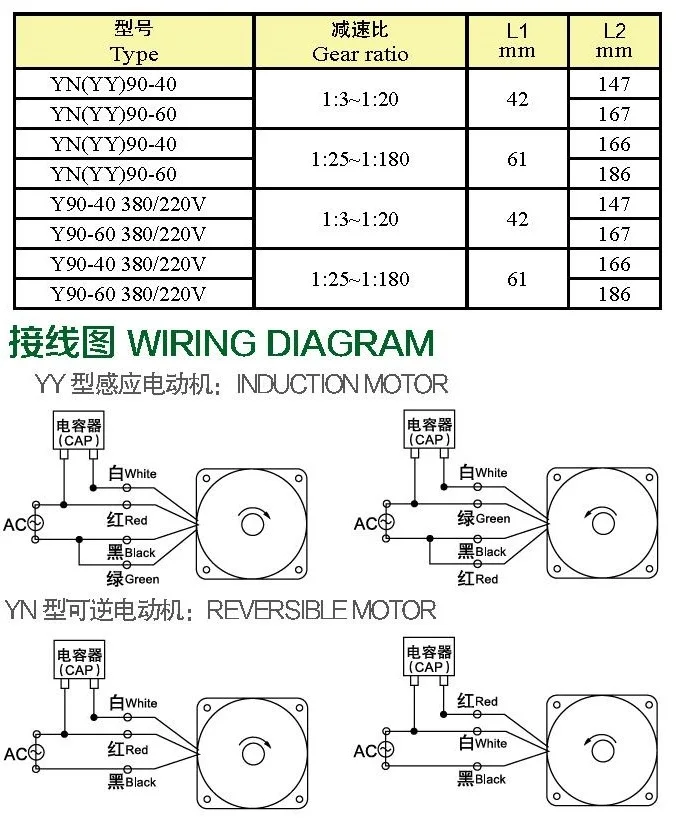

Size of YN90 40W 60W bbq gear motor
